Provision of services in the field of material preparation
Production consists of the following centres:

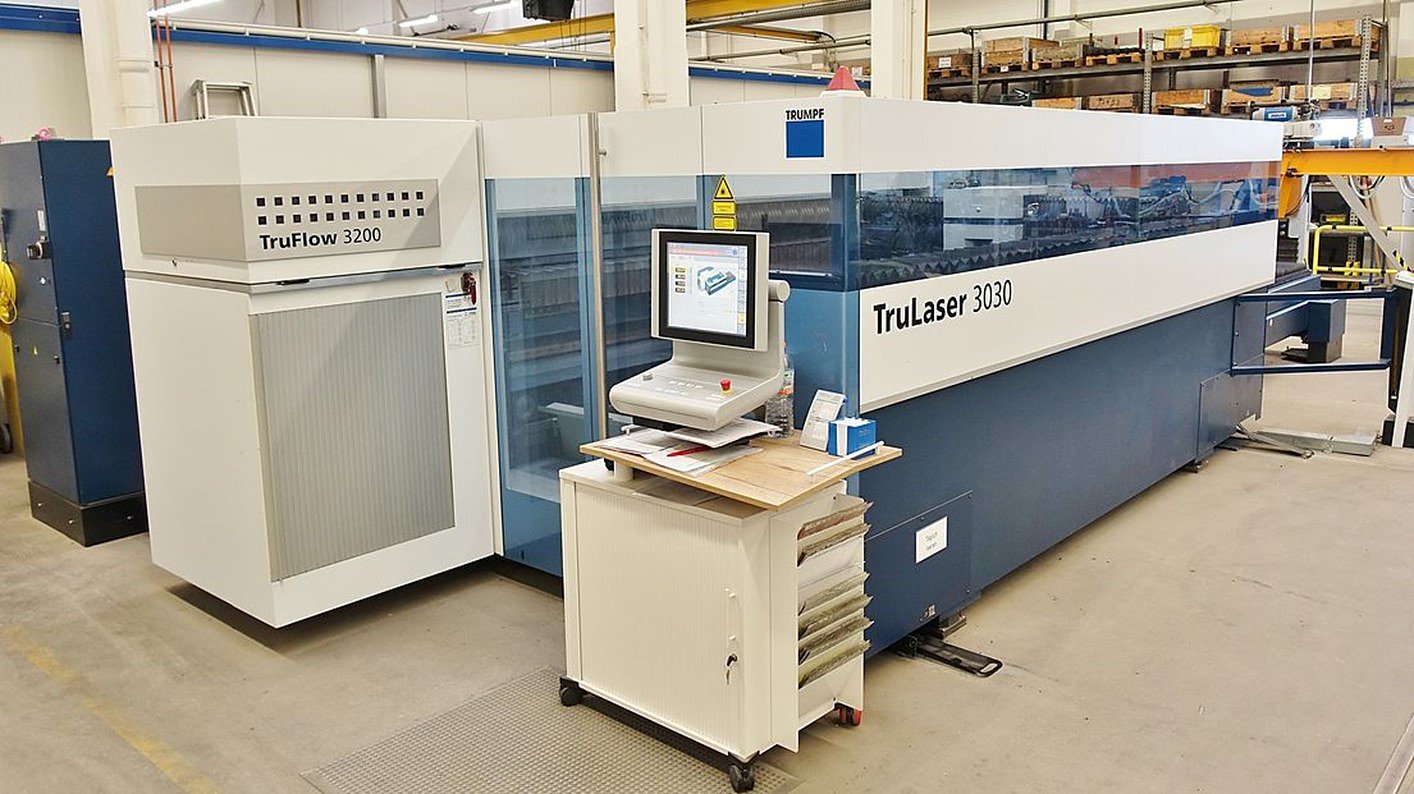

Laser cutting centre equipped with TRULASER 3030 technology
- Low degradation of mechanical properties due to very narrow thermal zone
- Emphasis on adherence to strict dimensional tolerances
- Guarantee of the surface quality of the cutting surfaces of the components
Working area:
x-axis 3000 mm
y-axis 1500 mm
z-axis 115 mm
Maximum sheet thicknesses:
Structural steel 15 mm
Stainless steel 12 mm
Aluminium alloy 8 mm

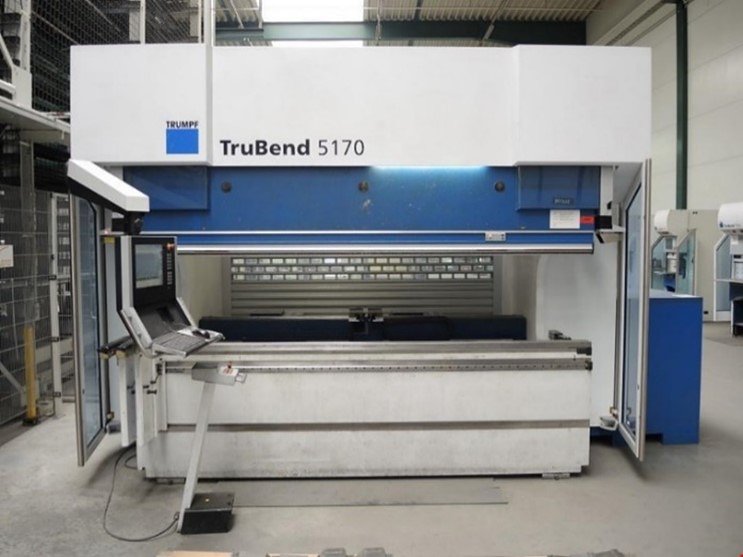

Forming centre with TRUBEND 5170 technology
- High precision of bent parts in synergy with CNC control
- Programming of the machine in the design office in TruBend
Parameters:
Pressing force 1700 kN
Boundary length 3230 mm
